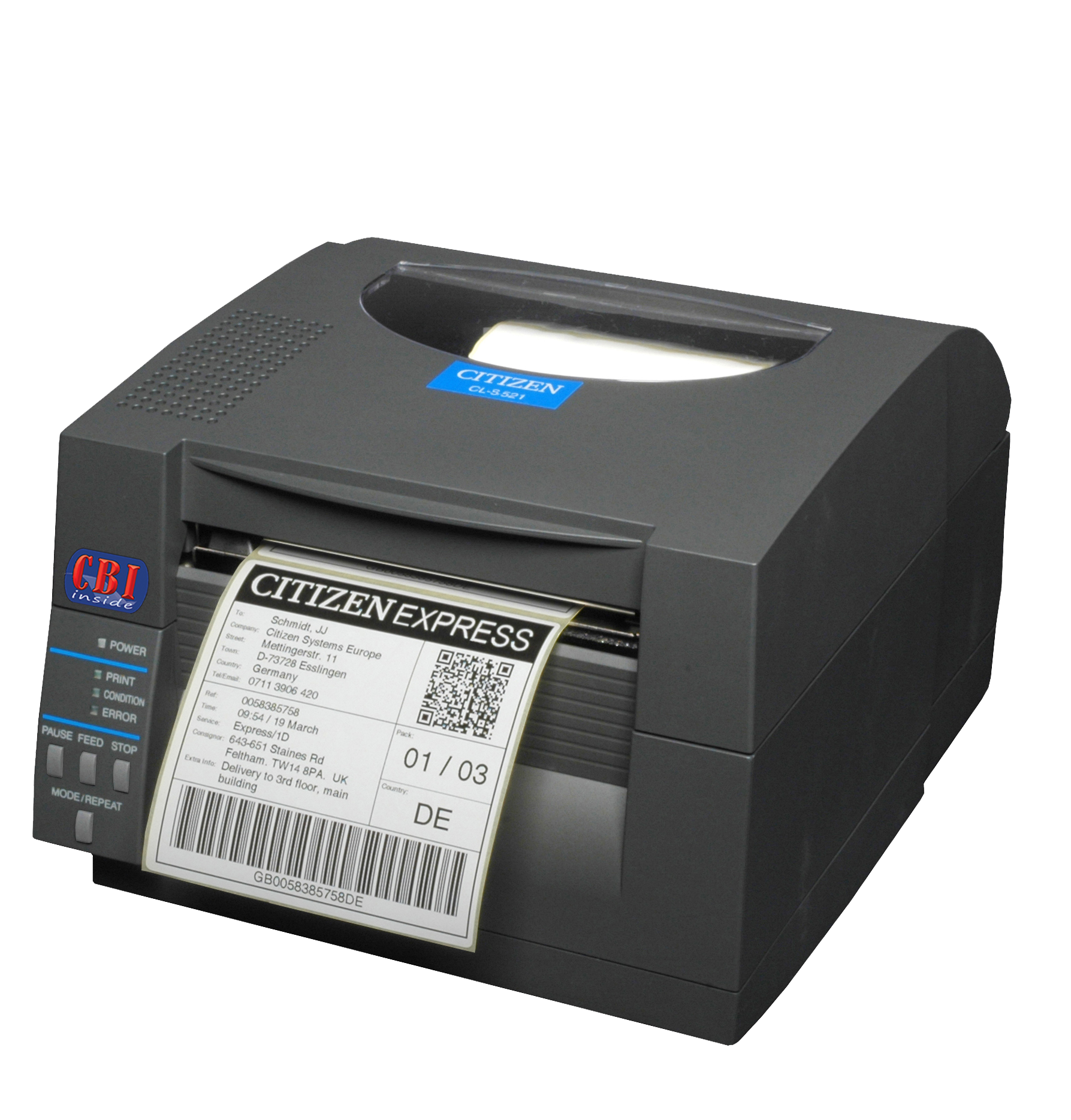

Citizen CL-S521CER-E
All-metal mechanisms for strength and durability
The CL-S521CER model is direct thermal using coated media but require no ribbon. Internal mains power supply to provide the most reliable operation and avoid the problem of external power supplies.
CL-S521CER-E is direct thermal, 203 dpi version
Self-contained metal mechanism for durable operation.
Durable Internal Power Supply
Specifications
Size (W x D x H) and Weight
231 x 289 x 183mm, 3.6 Kgs
Citizen CL-S521CER-E
Model
Direct Thermal
Printing Technology
203 dpi (8 dots per mm)
Resolution
Datamax® I-Class™ & DMX400™, Zebra® ZPL-II® Cross-Emulation™ automatic detection BASIC interpreter for data steam processing.
Emulations (Languages)
6 inches per second (150 mm/s)
Print Speed (max)
4.10 inches (104.1 mm)
Print Width (max)
0.5 - 4.65 inches (12.5 - 118.1 mm)
Media Width (min to max)
0.0025 - 0.01 inches (0.0635 - 0.254 mm)
Media Thickness (min to max)
Fully adjustable with label gap, card notch and black registration mark
Media Sensor
0.25 - 64.00 inches (6.35 - 1625.6 mm)
Media Length (min to max)
Parallel (IEEE-1284), Ethernet (10/100 BaseT), Wireless LAN (802.11b, g, n*)
Optional Interfaces
Internally: 5 inches (125 mm) diameter Externally: 8 inches with optional holder Core size: 1 inch (25mm)
Roll Size (max), Core Size
Hi-Open™ plastic case with safe close Hi-Lift™ metal mechanism Control Panel: 4 buttons and 4 LEDs
Case, Mechanism & Panel
Serial (RS-232C), USB (version 1.1)
Standard Interfaces
16.0 Mb total, 1.0 Mb available for user
RAM (Standard Memory)
4.0 Mb total, 1.0 Mb available for user
Flash (Non-Volatile Memory)
Free-of-charge on CD including design software supporting Windows®, XP®, 2003, 2008, Vista™, Windows 7
Windows® drivers and software
2 Years | 30 Kms or 6 months
Printer, Head Warranty
Key Benefits
Paper load: Hi-Lift™ mechanism and Hi-Open™ case for vertical opening and safe closing
Printing Speed:
fast print out - up to 150mm per second (6 inches per second)
Paper thickness: Paper thickness up to 0.254mm
Internal power supply for reliability
Case colour: Available in dark-grey
