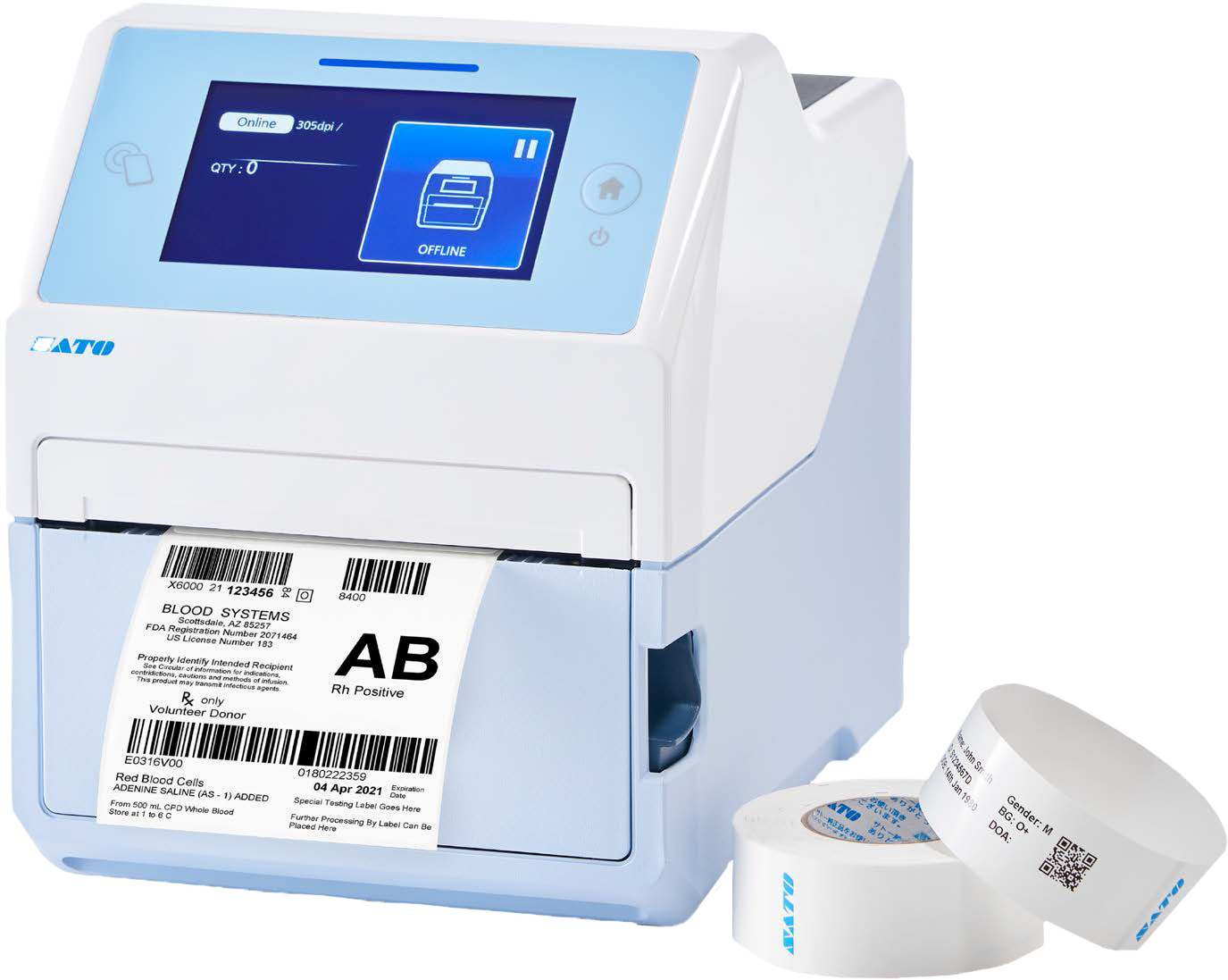

SATO SAT-WH3041
Healthcare Ready 4-inch Thermal Printer
Redefine the traditional Healthcare printing experience with the SAT-WH3041 4-inch thermal desktop printer. Standard features include clinical-ready antimicrobial plastic casing, disinfectant wipe-down ready, 4.3” full-color touch screen display, patented label waste prevention, and one touch media profile selection. The versatility of the SAT-WH3041 provides exceptional performance and seamless integration for Hospitals, Labs, Pharmacies, Medical Manufacturers, Long-Term care facilities, and anything in-between.
Specifications
Media Size (with liner) Width Standard
0.98” - 4.65” (25 -118mm)
Ribbon Width
4.37” (45 - 111mm)
Roll Diameter
1.5” (40mm)
Wind
Face-out
User Downloadable Fonts, Videos, Graphics or Format
Maximum 1GB
Large Status LED
Blue / Red
SATO SAT-WH3041
Model
Thermal Transfer (with Direct Thermal capability)
Printing Technology
Continuous, Tear-off, Cutter, Dispenser
Mode
203 dpi
Resolution
8 ips
Print Speed (max)
4.09” (104mm)
Print Area Width (max)
98.43 inches (2500mm)
Print Length (max)
Continuous 0.39" - 15.74" (10 - 400mm)
Tear-off 0.98" - 15.74" (25 - 400mm)
Cutter 0.91" - 15.74" (23 - 400mm)
Dispenser 0.91" - 15.74" (23 - 400mm)
Length
Transmissive Sensor for Gap, Reflective Sensor for Black Mark, Paper Out, Ribbon Out
Sensor Type
Roll (Continuous, Die-cut), Fan-fold, Tag, Ticket
Media Type
(Label & Liner) 0.0031” - 0.075” (0.08 - 0.19mm)
Media Thickness
Maximum: 5.04” (128mm) on 1.5” core
Roll Diameter
Transmissive Sensor for Gap, Reflective Sensor for Black Mark, Paper Out, Ribbon Out
Wind
328’ (100m) on 0.5” ID Core
Ribbon Length
For maximum print quality and optimum use, SATO recommends the use of SATO genuine consumables
SATO Genuine Consumables
16 Bitmap SATO Fonts, 40 Scalable SATO Fonts, Multi-National Language Support (47 Languages/Unicode), Single and Double Byte Fonts (Korean, Chinese, Japanese)
Internal Fonts
Disinfectant-ready and anti-microbial casing
Finishing
Auto-label Rotation: 0°, 90°, 180°, 270°
Rotation
238 x 177.8 x 214.1 mm, 9.37 x 7.0 x 8.43 inches; 3.4 Kgs, 7.5 lbs
Size (L x W x H) and Weight
Standalone Printing with SATO Application Enabled Printing (AEP), SATO Online Services (SOS), Multiple Interfaces-Auto-Switching, Auto Clone, Status Return, Label Waste Prevention
Functions - Useful Features
Memory and Processing
4GB Flash, 1GB RAM
Printer Memory
Connectivity
USB 2.0 (Type A, Type B), Ethernet (DHCPv4/DHCPv6), NFC
Standard
Wi-Fi and Bluetooth Ver 4.1 (Wi-Fi® and Wi-Fi Direct® Certified IEEE 802.11ac, Dual Band (2.4 GHz, 5 GHz))
Optional Interfaces
Barcode Symbologies
Code 39, Code 93, Code 128, CODABAR (NW7), EAN8/13, GS1-Databar™, GS1-128 (UCC/EAN128), Interleaved 2/5, Industrial 2/5, JAN 8/13, Matrix 2/5, MS1, Bookland, Postnet™, UPC-A/E
Linear
PDF417, Micro PDF, Maxi Code, GS1 Data Matrix, QR Code, Micro QR Code and Composite Symbologies, Aztec
2D Symbologies
User Friendly Support Tools
Adjustable Volume Setting
Audible Alerts
Head Check, Stand-by Mode, Cover Open, Test Print, Auto-Calibration, Label End, Ribbon Near-End and End
Self Diagnosis
4.3” Full Color Resistive Touch Screen
Display Panel
Print Head and Platen Replacement
Tool-Free Maintenance
Multi-national Language Support 47 Printable Languages with Scalable Fonts 31 LCD menu languages
Multi-national Language Support
Multiple Instructional Videos On-board, Space for Customized Videos
Operation Videos
Auto Detect - SBPL®, SEPL®, SZPL®, SDPL®, SIPL® or STCL® (Pre-installed), XML, PDF Direct Printing*, AEP* *Contact your SATO Sales Representative for more information/requirements
Emulation
SNMP Ver. 3, Web Interfaces, SATO Online Services (SOS), All-In-One Tool (AIOT), SOTI Connect
Remote Maintenance
Cutter, Real-Time Clock, Wireless LAN and Bluetooth
Options
Operating Characteristics
AC100V ~ AC240V ± 10%, 50/60 Hz (AC adapter) Output: DC24V ± 5.0% 2.7A
Electrical Requirements
Please contact SATO regarding agency approvals in your region
Standards & Agency Approvals
32 - 104˚F (0 - 40˚C) / 30 - 80% RH (without condensation)
Environment Operating
14 - 140˚F (-10 - 60˚C) / 15 - 90% RH (without condensation)
Storage
Key Benefits
Clinical-ready antimicrobial plastic casing
Disinfectant wipe-down ready
4.3” Full-color touch screen display
Standard USB and Ethernet
Real Time Clock (optional)
305 dpi print resolution
Thermal Transfer (with Direct Thermal capability)
Label Waste Prevention
Auto Clone (USB Memory for data copy)
On-board printer language emulations
Wireless options (WLAN with Bluetooth, NFC, and Mfi)
On-Board Help Videos
Standalone Printing with SATO Application Enabled Printing (AEP)
SATO Online Services (SOS)
PDF Direct Printing
Optional Guillotine Cutter
Applications
Patient Identification
Pharmacy and Product Labeling
Wristband Printing
Specimen Labeling
Slide Labeling
Visitor ID
