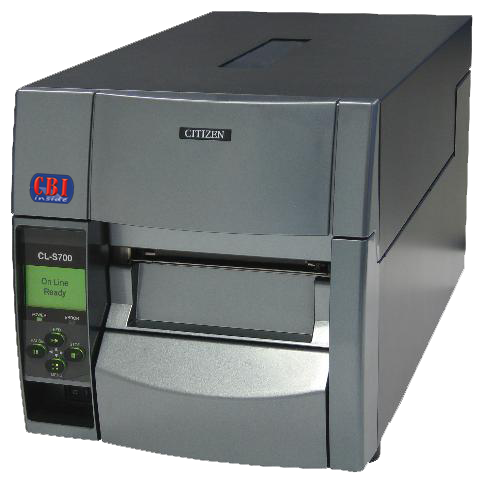

Citizen CL-S700IICBI-DT
Industrial printing with added speed and capacity
Front access for all operations including media and ribbon changing. The large graphic LCD gives a clear indication of printer status and easy printer configuration.
CL-S700IICBI-DT is direct thermal, 203 dpi version
Low space requirement - integrated power supply enables clean work station
On-board Wireless LAN, 64/128 bit WEP, WPA, Ethernet
Specifications
Media Thickness (min to max)
63.5 to 254 μm
Size (W x D x H) and Weight
255 x 490 x 265 mm, 13.3 Kg
Citizen CL-S700IICBI-DT
Model
Direct Thermal
Printing Technology
203 dpi
Resolution
10 inches per second (254 mm/s)
Print Speed (max)
4 inches (104 mm)
Print Width (max)
1 - 4 inches (25 - 118 mm)
Media Width (min to max)
Outside diameter 8 inches (200 mm) Core size 1 inch (25mm) Plus Outside media slot
Roll Size (max), Core Size
0.25 - 99.99 inches (6.35 - 2539.74mm)
Media Length (min to max)
Fully adjustable rear sensor and high resolution front sensor
Media Sensor
Wireless LAN 802.11b and 802.11g standards, 100 metres, 64/128 bit WEP, WPA, up to 54Mbps, Ethernet (10/100 BaseT)
Interface
Triple interface USB, parallel and serial built-in, exchangeable interface card slot for optional card
Main Interface
3.4 inches (86.5 mm) maximum outside diameter. 450 meter length
Ribbon size
Ink side in or out, automatically sensing. Wax, Wax/Resin or Resin Type
Ribbon winding & type
Hi-Lift™ metal mechanism with wide opening head
Mechanism
ARCP™ automatic ribbon tension adjustment
Ribbon system
4 buttons, 4-line back-lit graphic LCD
Control panel
110 to 240 VAC (90 to 264 VAC), 50 to 60 Hz, 60W typical power consumption when printing DOE VI / COC Tier 2 compliant (less than 0.15W no-load consumption)
Emulations (Languages)
2 Years for Printer; 50 Kms/6 months on head
Printer, Head Warranty
Free-of-charge on CD with printer, including support for various platforms
Drivers and software
Flash (Non-Volatile Memory)
16 MB total, 4MB available for user
2 years on printer | 6 months or 50 Kms printhead
Warranty
Key Benefits
Paper load: Front access for all operations including media and ribbon changing
Printing Speed:
Ultra fast print out - up to 254mm per second ( 10 inches per second)
No more unreadable labels: the ARCP™ ribbon control technology assures clear prints
Wide range of ribbon options: Uses up to 450 meter inside and outside wound ribbons
