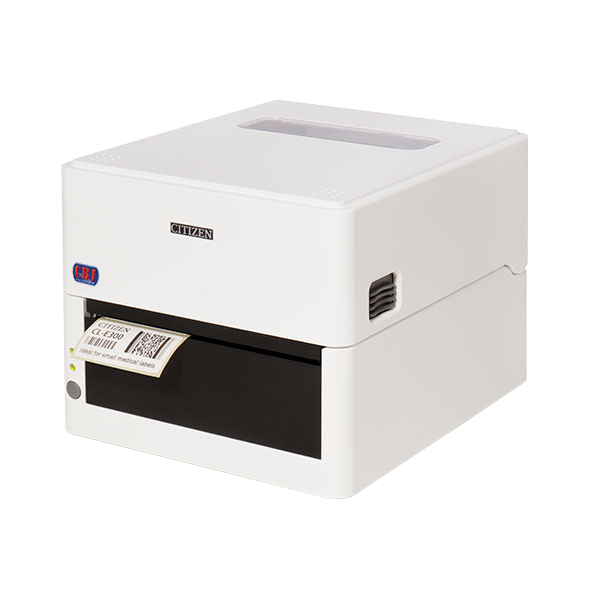

Citizen CL-E300EXCBI-EPWL White
Compact and fully-featured printing
Flexible Connectivity
The small footprint of the CL-E300EX makes it a perfect printer for tight spaces but is still extremely easy to use. With on-board Ethernet LAN, 2.4/5 GHz Wifi, USB, and Serial interfaces as standard. Citizen‘s LinkServer™ web management and configuration system is integrated to allow full printer control.
CL-E300EX is direct thermal, 203 dpi version
Unique, contemporary design
Small footprint, ideal for logistics and warehouse environments
On-board LAN, 2.4/5 GHz Wifi, USB and Serial
Specifications
Citizen CL-E300EXCBI-EPWL White
Model
Direct Thermal
Printing Technology
203 dpi
Resolution
8 inches per second (200 mm/s)
Print Speed (max)
4.1 inches (104 mm)
Print Width (max)
0.94 - 4.65 inches (24 - 118 mm)
Media Width (min to max)
63.5 μm – 190 μm, 0.0025 to 0.0075 inches
Media Thickness (min to max)
Adjustable gap & black mark sensors
Media Sensor
6.4 – 2540 mm, 0.25 – 100 inches depending on emulation
Media Length (min to max)
Up to 5 inches (125mm), Core 1 to 1.5 inches (25-38mm)
Roll Size (max), Core Size
10/100 Ethernet (LAN) with LinkServer™, 2.4/5 GHz Wifi, USB 2.0, Serial RS232C
Standard Interfaces
Hi-Open™ plastic case with ClickClose™ Black and Pure White case colours
Case
Feed/Setting button and two LEDs (Power & Status)
Control Panel
16MB Flash (User area 4MB), 32MB SDRAM (User area 4MB)
Memory configuration
Free-of-charge with printer, supporting Windows® 7, 8.1, 10, 2008R2, 2012, 2016, Linux and many others
Drivers and software
170 x 208 x 152 mm, 6.7 x 8.2 x 6.0 inches; 1.98 Kgs, 4.36 lbs. (AC adapter, 0.36 Kgs, 0.79 lbs)
Size (W x D x H) and Weight
110 to 240 VAC (90 to 264 VAC), 50 to 60 Hz, 60W typical power consumption when printing DOE VI / COC Tier 2 compliant (less than 0.15W no-load consumption)
Power consumption
2 Years for Printer | 30 Kms/6 months on head
Printer, Head Warranty
Key Benefits
Paper load: Hi-Lift™ mechanism and ClickClose™ closure
Printing Speed:
Ultra fast print out - up to 200mm per second (8 inches per second)
Paper thickness: Paper thickness up to 0.150mm
Single button control panel
Case colour: Available in black or white
Media sensor:
Adjustable media sensor
Black mark sensor
Label gap sensor
Disinfectant ready
2.4/5 GHz Wifi
