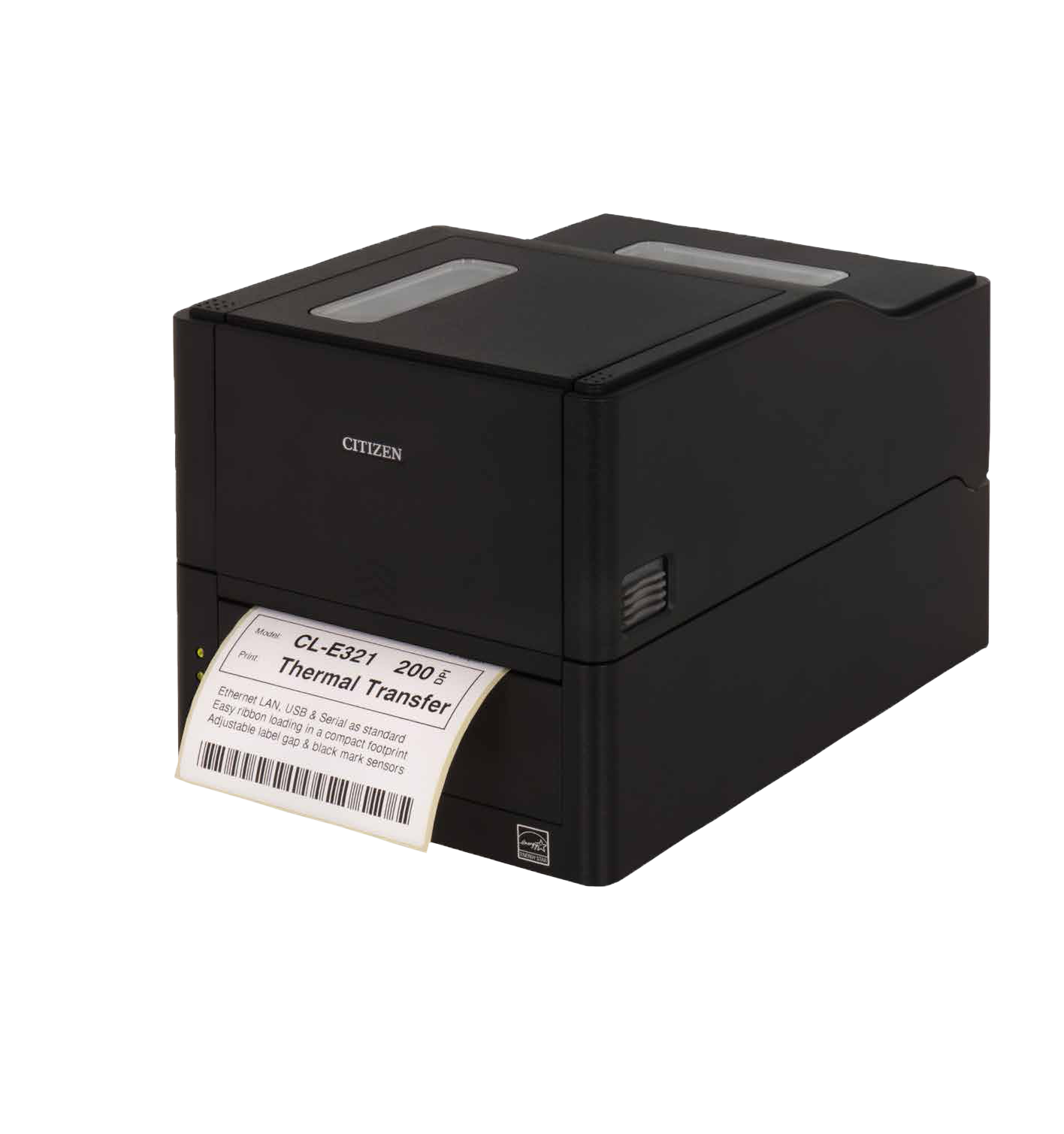

Citizen CL-E321CBI Black
Designed and built for performance
The CL-E321CBI‘s compact, modern, functional design takes up very little desk space, is easy to use and is also perfectly at home in any location, from warehouses to hospitals. It also has a fast print speed of 8 inches-per-second, is quick to setup and to load with media. The CL-E321CBI features onboard LAN, USB and Serial interfaces. All industry standard emulations are fully supported, with the option of remote operation via a web browser, using the Citizen LinkServer™ management tool.
CL-E321CBI is direct thermal and thermal transfer, 203 dpi version
On-board LAN, USB and Serial
Available in black and white
Specifications
Citizen CL-E321CBI Black
Model
Black and White
Model Colors
Thermal Transfer and Direct Thermal
Printing Technology
203 dpi
Resolution
8 inches per second (200 mm/s) at 203 dpi; 6 IPS at 300 dpi
Print Speed (max)
4.1 inches (104 mm)
Print Width (max)
0.94 - 4.65 inches (24 - 118 mm)
Media Width (min to max)
63.5 μm – 190 μm, 0.0025 to 0.0075 inches
Media Thickness (min to max)
Adjustable gap & black mark sensors
Media Sensor
6.4 – 2540 mm, 0.25 – 100 inches depending on emulation and resolution
Media Length (min to max)
Up to 5 inches (125mm), Core 1 to 1.5 inches (25-38mm)
Roll Size (max), Core Size
Hi-Open™ plastic case with ClickClose™ Black and Pure White case colors
Case
10/100 Ethernet (LAN) with LinkServer™, USB 2.0, Serial RS232C
Standard Interfaces
Feed/Setting button and two LEDs (Power & Status)
Control Panel
Cross-Emulation™ - automatically switching between Zebra® ZPL-II® and Datamax® CBI Basic Interpreter for programmers. EPL emulation coming soon.
Control Languages
16MB Flash (User area 4MB), 32MB SDRAM (User area 4MB)
Memory configuration
Free-of-charge with printer, supporting Windows® 7, 8.1, 10, 2008R2, 2012, 2016, Linux and many others
Drivers and software
178 x 266 x 173 mm, 7.0 x 10.5 x 6.8 inches; 2.60 Kgs, 5.73 lbs (AC adapter, 0.36 Kgs, 0.79 lbs)
Size (W x D x H) and Weight
110 to 240 VAC (90 to 264 VAC), 50 to 60 Hz, 60W typical power consumption when printing DOE VI / COC Tier 2 compliant (less than 0.15W no-load consumption)
Power consumption
2 Years for Printer | 50 Kms/6 months on head
Printer, Head Warranty
Paper load: Hi-Lift™ mechanism and ClickClose™ closure
Printing Speed:
Ultra fast print out - up to 200mm per second (8 inches per second)
Paper thickness: Paper thickness up to 0.150mm
Quick and easy ribbon change and media loading
Case colour: Available in black or white
Media sensor:
Adjustable media sensor
Black mark sensor
Label gap sensor
